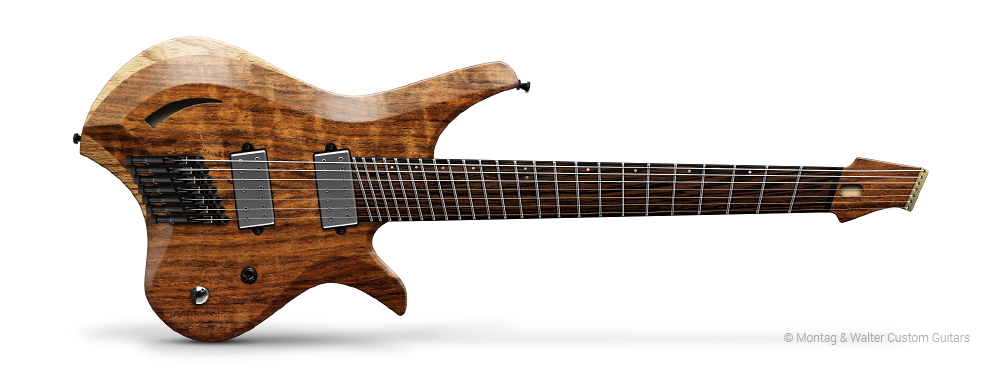

Headless Prototype

This is the first "headless" guitar I built. The design got changed in early 2016 to become my "Alia" model. This is also the first time ever that I put my hands on a multiscale construction, fretboard binding, a chambered body and a soundhole. I'm not too much of a fan of the design anymore, but I learnt a lot when building this instrument.

Specifications

Production #9, June 2015
Body Swamp Ash, 3-piece, chambared
Top figured Ovangkol, bookmatched
Neck Maple / Wenge, 5-piece
Neckjoint M&W Bolt-on
Scale 635 – 675 mm
Fretboard Wenge, 12" radius
Inlays 3 mm dots, MOP
Frets 24, Jumbo
Nut Bone, 48 mm
Neck Pickup DiMarzio Ionizer 7 Neck
Bridge Pickup DiMarzio Ionizer 7 Bridge
Bridges ABM Single Headless
Controls Push-Push-Master-Volume (split)
Toggle MEC, 3-way-toggle
Color Natural
Finish Danish Oil
